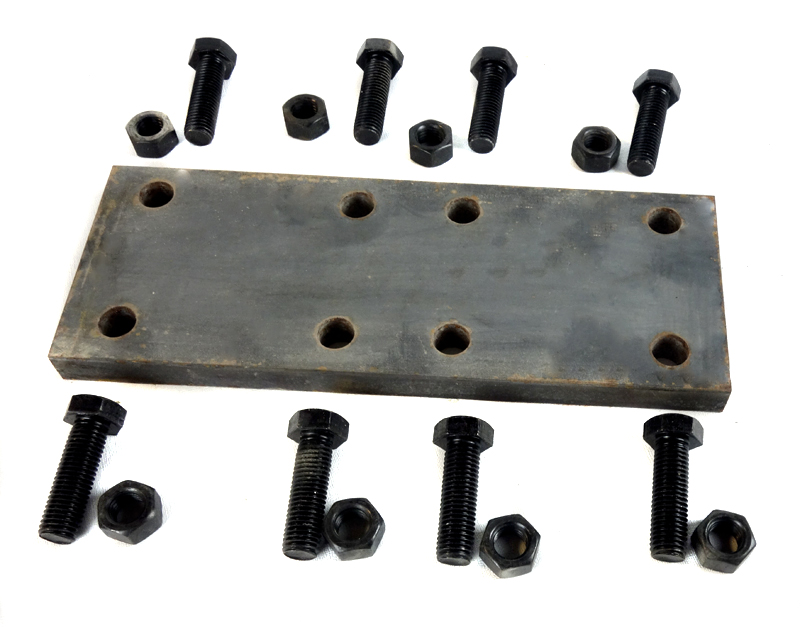

Fish Plate 18-1/2# w/ hardware

Description

Fish Plate T140-1 18.5 (lb) w/ hardware or T140-2 (22 lb)

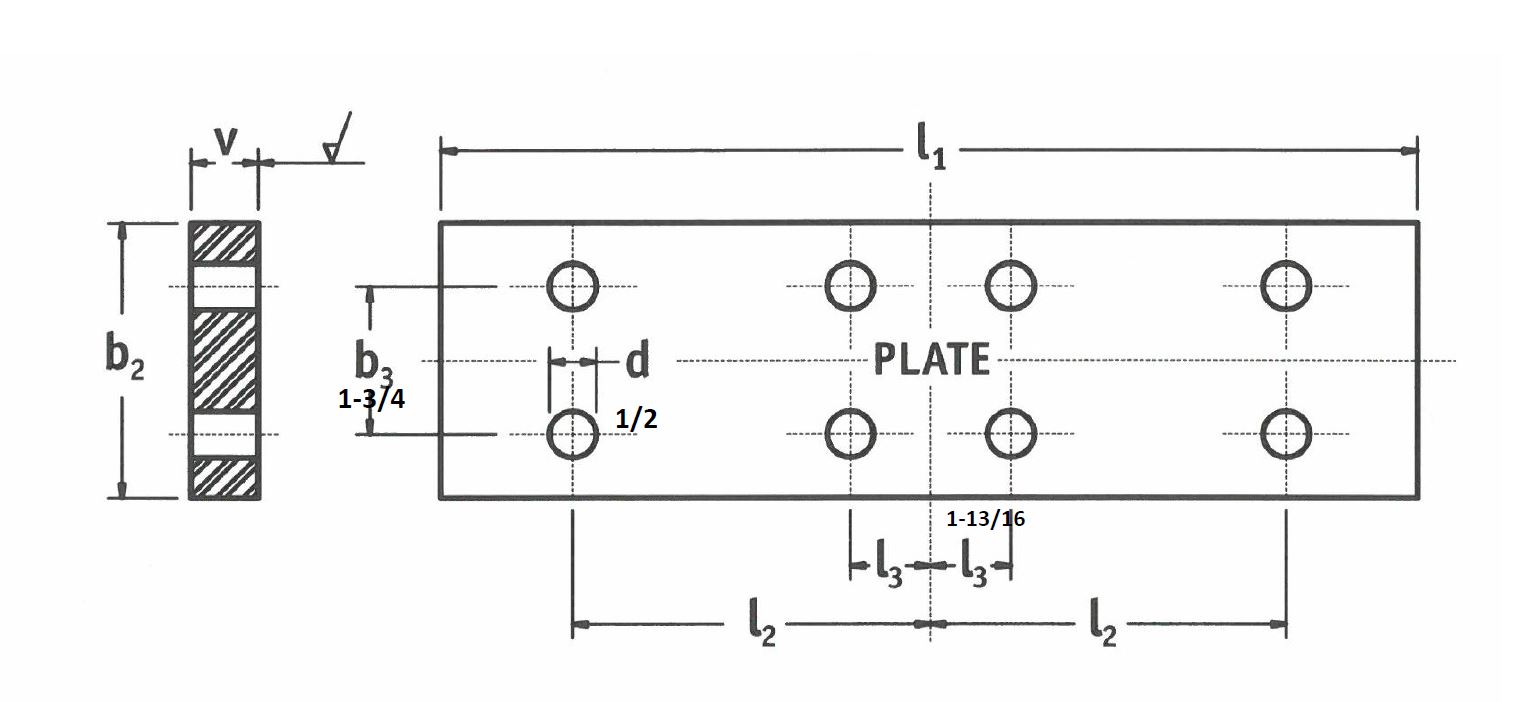

Part # Rail Size wt/pc (lbs) d b2 b3 l1 l2 l3 v Hex Head  Bolt Size
17001.52 T75—3/B (6 lb) 2.2 0.5118 3.46 1.693 8.27 3.54 0.512 0.008
17002.52 T89  (8 lb) 7.44 0.5625 3.5 2.25 12 4.5 1.5 0.63 1/2 x 1 3/4
2211.6 T127-1 (12 lb) 12.76 0.6875 5 3.125 12 4.5 1.5 0.75 5/8 x 2
4889 T127-2  (15 lb) 12.76 0.6875 5 3.125 12 4.5 1.5 0.75 5/8 x 2
33352 T140-1 (18.5 lb) 22.62 0.8125 5.5 3.625 14.5 6 1.25 1 3/4 x 2 1/2
33352 T140-2 (22 lb) 22.62 0.8125 5.5 3.625 14.5 6 1.25 1 3/4 x 2 1/2
40357 T140-3 (30 lb) 28.27 0.8125 5.5 3.625 14.5 6 1.25 1.25 3/4 x 3
